NAU Maxi
2 Half Door Dual Digital Refrigerator, 670lt (-2/-2)
2-half door, dual temperature refrigerator 670lt, -2+10°C / -2+10°C, digital, AISI 304, R290
- Features
- Specifications
- Documents
- Accessories
-
Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K).
-
Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.
-
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
-
Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space.
-
60 mm-thick insulation covering the evaporator can be easily removed with a single operation.
-
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
-
Rilsan coated grids for improved protection.
-
Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.
-
Tropicalized unit.
-
Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
-
Automatic defrost.
-
Easy serviceability thanks to the intuitive control panel with access via app.
-
Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle.
-
Right hinged two 1/2 doors.
-
Equipped with single phase electrical cable and Schuko plug for easy and fast installation.
-
Right hinged full door.
-
Easy access to the main components for maintenance.
-
Constructed from the highest quality AISI 304 Stainless steel.
-
Stainless steel runners and supports easily disassembled.
-
Anti-corrosion bottom avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.
-
Doors are self-closing and can be fully opened up to 180°.
-
Lockable door.
-
The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.
-
Mounted on adjustable Stainless steel feet, with castors as an option.
Refrigeration Data
- Second Unit - Refrigerant Type: R134a
- Control type: Digital
- Refrigeration power at evaporation temperature: -10 °C
- Operating temperature - First Unit (min-max): -2°C / 10°C
- Operating temperature - Second Unit (min-max): -2°C / 10°C
- Operating mode: Ventilated
Electric
- Supply voltage: 220-240 V/1 ph/50 Hz
- Electrical power max.: 0.252 kW
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Energy Class (EU Reg. 2015/1094): E
- Yearly and daily energy consumption (EU Reg. 2015/1094): 1095kWh/year - 3kWh/24h
- Climate class (EU Reg. 2015/1094): Heavy Duty (5)
- Energy Efficiency Index-EEI (EU Reg. 2015/1094): 84,29
Capacity:
- Number and type of grids (included): 3 - GN 2/1
Key Information:
- Net Volume: 420 lt
- External dimensions, Width: 710 mm
- External dimensions, Depth: 835 mm
- External dimensions, Depth with Doors Open: 1480 mm
- External dimensions, Height: 2050 mm
- Number and type of doors: 2x1/2 Full
- Type of external material: 304 AISI
- Type of internal material: 304 AISI
- Internal panels material: 304 AISI
- Number of positions & pitch: 40; 30 mm
- Gross capacity: 670 lt
- Type of model (EU Regulation. 2015/1094): vertical chilled
Data Sheet
Leaflets

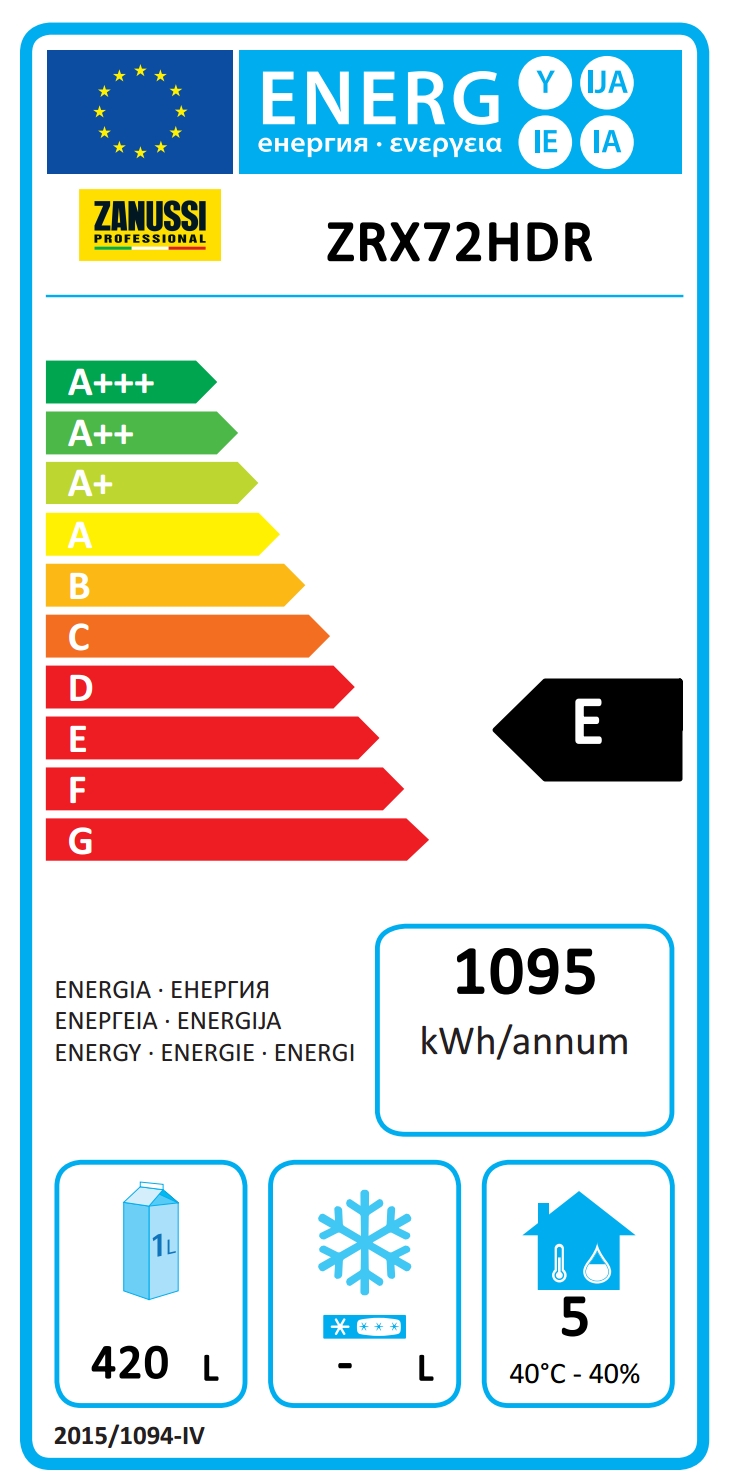

Energy Label
BIM/Revit
Included Accessories
